Demo Using APIs and UI

1. Login as a User

1.1 Get the list of policies.

Displaying list of policies

GET /api/v1/policies/

200: OK Successful Operation

{
    [
			{
				id: "621376c8e6763a0014fb0de4",
				config:{
					id: "97379c43-2bce-4e67-9817-a79fbad3e53d",
					blockType: "InterfaceContainerBlock"
				}
			}
		]
}

1.2 In the policy config there is a root block which is the top of the structure

1.3 Request the config for the root block

Requesting configuration of root block

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/97379c43-2bce-4e67-9817-a79fbad3e53d

200: OK Successful Operation

{
    	uiMetaData: {...},
			blocks: [
				{
					id: "bb342b37-8bb6-4595-93fc-98fd63a23c16",
					blockType: "PolicyRolesBlock"
				}
			]
}

1.4 Root block contains other blocks in the 'blocks' field. Request the config for the block by the block ID. Recursively repeat this operation for all contained blocks in order to construct all components.

Requesting configuration of block by block ID

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/bb342b37-8bb6-4595-93fc-98fd63a23c16

200: OK Successful Operation

{
     roles:
                            ["INSTALLER"]
                            uiMetaData: {...},
}

1.5 At present only PolicyRolesBlock is available to the user. Select the "INSTALLER" role.

Registering the role as

POST /api/v1/policies/621376c8e6763a0014fb0de4/blocks/bb342b37-8bb6-4595-93fc-98fd63a23c16

Request the role

Path Parameters

Name	Type	Description
role*	String	INSTALLER

1.6 Request the root block and all contained blocks.

1.6.1 Requesting InterfaceStepBlock

Requesting InterfaceStepBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/97379c43-2bce-4e67-9817-a79fbad3e53d

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks: [
                {
			id: "9d98e2fd-6d2b-4152-b48c-cf10eb4f1298",
			blockType: "InterfaceStepBlock"
                }
            ]
}

1.6.2 Requesting requestVCDocumentBlock

Request requestVCDocumentBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/9d98e2fd-6d2b-4152-b48c-cf10eb4f1298

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
		id: "53dac8a9-b480-457e-920a-e4d4c653bfbe",
		blockType: "requestVCDocumentBlock"
           ]
}

1.6.3 Requesting Installer Details

Requesting Installer Details

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/53dac8a9-b480-457e-920a-e4d4c653bfbe

200: OK Successful Operation

{
    uiMetaData: {...},
    schema: {...}
}

1.7 Create json according to the schema and send to the requestVCDocumentBlock

Creating JSON and sending it to requestVCDocumentBlock

POST /api/v1/policies/621376c8e6763a0014fb0de4/blocks/53dac8a9-b480-457e-920a-e4d4c653bfbe

Request Body

Name	Type	Description
field0*	String	Applicant legal name
field1*	String	Balance sheet total for last financial year in USD
field2*	String	CEO or general Manager passport number
field3*	String	Corporate registration number or passport number
field4*	String	Country
field5*	String	Date
field6*	String	Legal Status
field7*	String	Main business ie food retailer
field8*	String	Name of CEO or General Manager
field9*	Number	Number of employees
field10*	String	Postal zip code
field11*	String	Primary contact email
field12*	String	Primary contact name
field13*	Number	primary contact telephone
field14*	String	Registered address line 1
field15*	String	Role requested under this application ie iREC participant and or registrant
field16*	URL	website URL
field17*	Number	Years of registration
type*	token	0d4b2c1f-dc7a-47f5-a9ab-238d190f6769&1.0.0
@context*	array	["https://ipfs.io/ipfs/bafkreihj5c6npywzkfx2pylalh5f23lhy2ogofxhdqctvpoh3gczwtzjg4"]

1.8 Request the root block and all contained blocks again.

1.8.1 Requesting InterfaceStepBlock

Requesting InterfaceStepBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/97379c43-2bce-4e67-9817-a79fbad3e53d

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks: [
        {
	    id: "9d98e2fd-6d2b-4152-b48c-cf10eb4f1298",
	    blockType: "InterfaceStepBlock"
	}
	    ]
}

1.8.2 Requesting InformationBlock

Requesting InformationBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/9d98e2fd-6d2b-4152-b48c-cf10eb4f1298

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
	        id: "2368a338-adaa-434a-a7a0-803e009e5717"
		blockType: "InformationBlock"
           ]
}

1.8.3 Requesting data after approval

Waiting for the data to be approval

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/2368a338-adaa-434a-a7a0-803e009e5717

200: OK Successful Operation

{
    uiMetaData: {...},
}

2. Login as a Standard Registry

2.1 Request the list of policies.

Request List of policies

GET /api/v1/policies

200: OK Successful Operation

{
    {
		id: "621376c8e6763a0014fb0de4",
		config:{
				id: "97379c43-2bce-4e67-9817-a79fbad3e53d",
				blockType: "InterfaceContainerBlock"
			}
    }
}

2.2 Request the root block and all contained blocks.

2.2.1 Requesting InterfaceContainerBlock

Requesting InterfaceContainerBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/97379c43-2bce-4e67-9817-a79fbad3e53d

200: OK

{
    uiMetaData: {...},
    blocks: [
		{
                        id: "77da138a-c455-4ec6-8202-fd6a529f5300",
			blockType: "InterfaceContainerBlock"
		}
	    ]
}

2.2.2 Requesting InterfaceContainerBlock

Requesting InterfaceContainerBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/77da138a-c455-4ec6-8202-fd6a529f5300

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
		id: "e5c40e14-3970-4f40-9e2c-34a260e6f499",
		blockType: "InterfaceContainerBlock"
           ]
}

2.2.3 Requesting InterfaceDocumentsSourceBlock

Requesting InterfaceDocumentsSourceBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/e5c40e14-3970-4f40-9e2c-34a260e6f499

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
		id: "d5c7c788-696d-457d-985e-dce3886b7267",
		blockType: "InterfaceDocumentsSourceBlock"
           ]
}

2.2.4 Requesting Approval

Requesting Approval

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/d5c7c788-696d-457d-985e-dce3886b726

200: OK Successful Operation

{
    uiMetaData: {...},
    data:[...],
    fields: [
		...
		{
		    action: "block"
                    bindBlock: "approve_documents_btn"
		}
            ]
}

2.3 In the 'Status Operation' field , there is a link to "approve_documents_btn" block, which requests the Block ID.

Requesting BlockID

GET /api/v1/policies/621376c8e6763a0014fb0de4/tag/approve_documents_btn

200: OK Successful Operation

{
    "id":"6f0f37c0-b62b-4be5-b1d0-e8114398350d"
}

Requesting InterfaceActioBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/6f0f37c0-b62b-4be5-b1d0-e8114398350d

200: OK Successful Operation

{
    "id":"6f0f37c0-b62b-4be5-b1d0-e8114398350d",
    "blockType":"InterfaceActionBlock",
    "type":"selector",
    "uiMetaData":{
			"field":"status",
			"options":[
				    {
					"name":"Approve","value":"APPROVED","uiClass":"btn-approve","bindBlock":"update_approve_document_status"},
				    {
					"name":"Reject","value":"REJECTED","uiClass":"btn-reject","bindBlock":"rejected_approve_document_status"}
				  ]
		},
    "field":"option.status"
}

2.4 Approve the document

Select the VC from the grid:
		const VC = data[0];

Change status:
		VC.option.status = "APPROVED";

Send to the VC:
POST  /api/v1/policies/621376c8e6763a0014fb0de4/blocks/6f0f37c0-b62b-4be5-b1d0-e8114398350d
		Request:
				VC


3. Login as the User

3.1 Request the root block and all the contained blocks.

3.1.1 Requesting InterfaceStepBlock

Requesting InterfaceStepBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/97379c43-2bce-4e67-9817-a79fbad3e53d

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks: [
                {
			id: "9d98e2fd-6d2b-4152-b48c-cf10eb4f1298",
			blockType: "InterfaceStepBlock"
                }
            ]
}

3.1.2 Requesting InterfaceContainerBlock

Requesting InterfaceContainerBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/9d98e2fd-6d2b-4152-b48c-cf10eb4f1298

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
    {
	id: "7b9273a1-1398-4560-be19-cc59d6c4c752",
	blockType: "InterfaceContainerBlock"
    }
	   ]
}

3.1.3 Requesting multiple InterfaceContainerBlock

Requesting multiple InterfaceContainerBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/7b9273a1-1398-4560-be19-cc59d6c4c752

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
		{
			id: "4008376b-0047-4004-83df-cf4c3555fc33",
			blockType: "InterfaceContainerBlock"
		},
		{
			id: "7b47566d-c61e-4a74-8646-3d9bbac8eb42",
			blockType: "InterfaceContainerBlock"
		}
	    ]
}

3.1.4 Requesting InterfaceDocumentsSourceBlock and InterfaceStepBlock

Requesting InterfaceDocumentsSourceBlock and InterfaceStepBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/4008376b-0047-4004-83df-cf4c3555fc33

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
		{
			id: "af9fd59b-06a3-48b5-b610-b0af7888e39b",
			blockType: "InterfaceDocumentsSourceBlock"
		}
		{
			id: "06cfd440-03ec-471e-9b3f-e0c583555b94",
			blockType: "InterfaceStepBlockBlock"
		}
	   ]
}

3.1.5 Requesting Data

Requesting Data

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/af9fd59b-06a3-48b5-b610-b0af7888e39b

200: OK Successful Operation

{
    uiMetaData: {...},
    data:[...],
    fields: [...]
}

3.1.6 Requesting requestVCDocumentBlock

Requesting requestVCDocumentBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/06cfd440-03ec-471e-9b3f-e0c583555b94

200: OK Successful Operation

{
    uiMetaData: {...},
    blocks:[
                {
			id: "d068b59e-eec7-4452-b866-468e9ed6c7fa"
			blockType: "requestVCDocumentBlock"
                }
           ]
}

3.1.7 Requesting Data and Schema

Requesting Data and Schema

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/d068b59e-eec7-4452-b866-468e9ed6c7fa

200: OK Successful Operation

{
    uiMetaData: {...},
    schema: {...}
}

3.2 In the fields of the grid there is a link to the "download_config_btn" bloc.

Requesting BlockID

GET /api/v1/policies/621376c8e6763a0014fb0de4/tag/download_config_btn

200: OK Successful Operation

{
    "id":"24942cf7-fcc5-4dff-8471-d5affeb4c206"
}

3.2.1 Requesting InterfaceActionBlock

Requesting InterfaceActionBlock

GET /api/v1/policies/621376c8e6763a0014fb0de4/blocks/24942cf7-fcc5-4dff-8471-d5affeb4c206

200: OK Successful Operation

{
    id: "24942cf7-fcc5-4dff-8471-d5affeb4c206",
    blockType: "InterfaceActionBlock",
    type: "download",
    "uiMetaData":{...}
}

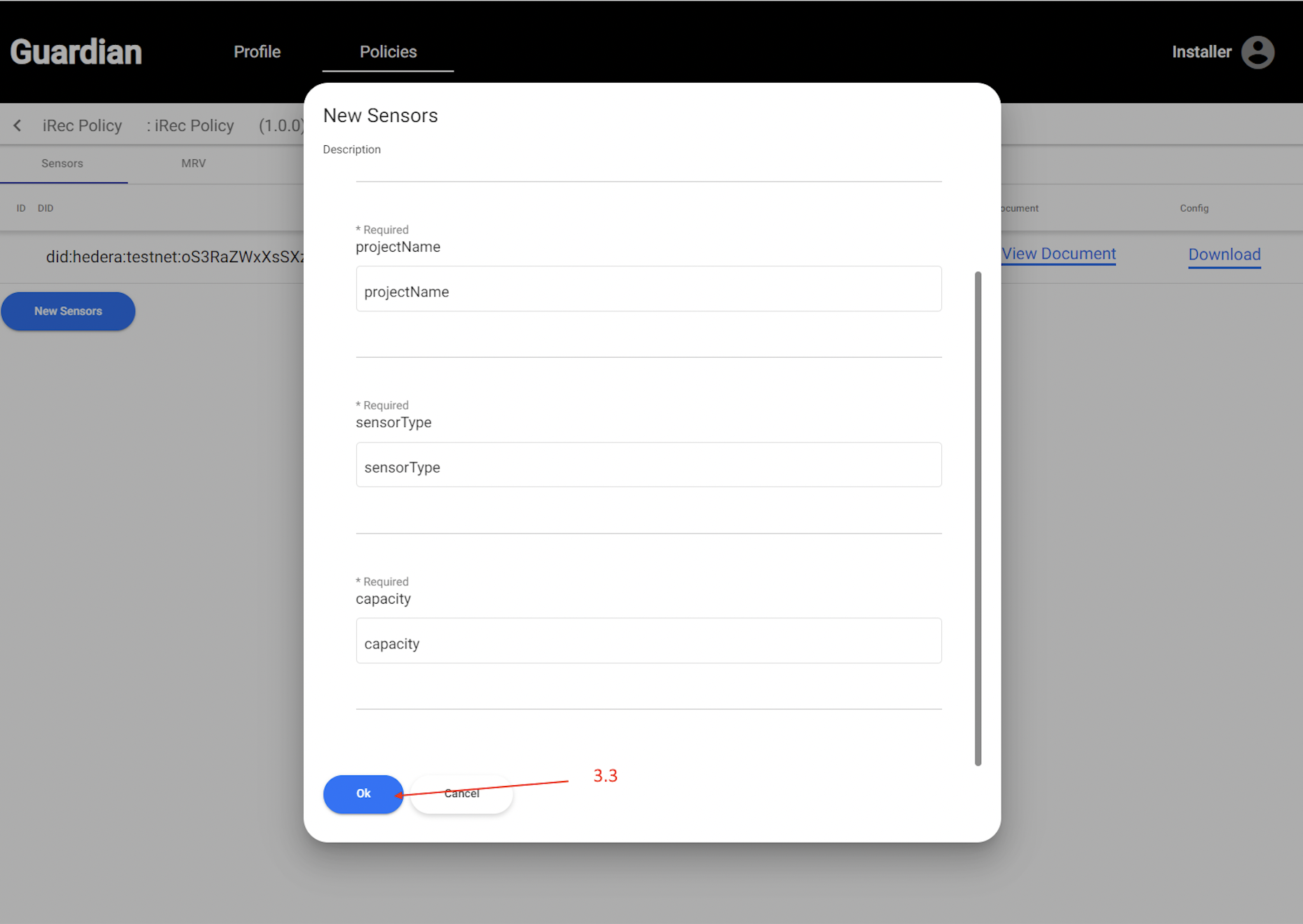

3.3 Create a sensor

Creating a Sensor

POST /api/v1/policies/621376c8e6763a0014fb0de4/blocks/d068b59e-eec7-4452-b866-468e9ed6c7fa

Request Body

Name	Type	Description
field0*	String	projectID
field1*	String	projectName
field2*	String	sensorID
field3*	String	capacity
type*	token	885838ef-6385-403a-b413-38baad45ee26&1.0.0
@context*	URL	["https://ipfs.io/ipfs/bafkreidnedcys7trnfeovygn3tvemmlltnszbci6fhnk2hnexscmtchhka"]

3.4 Refresh the Blocks

3.5 Download the config

Downloading the configuration

POST /api/v1/policies/621376c8e6763a0014fb0de4/blocks/24942cf7-fcc5-4dff-8471-d5affeb4c206

Request Body

Name	Type	Description
VC*	String	record in the grid (data[0])

3.6 Sample MRV Sender Data

Sending MRV Data

POST /external

Sending MRV Data

Request Body

Name	Type	Description
document	String	"id":"8d8e8a0a-211d-4180-8001-2e30cd7b915f", "type":[ "VerifiableCredential" ], "issuer":"did:hedera:testnet:3G7JYDvL5QsbBz5u9531UyMKWPJHdDQ5B6nRMK3zqoUm;hedera:testnet:tid=0.0.34404759", "issuanceDate":"2022-05-05T12:30:14.909Z", "@context":[ "https://www.w3.org/2018/credentials/v1" ], "credentialSubject":[ { "type":"5b4cdcee-ba73-4234-bddd-2988b050552c&1.0.0", "@context":[ "https://ipfs.io/ipfs/bafkreiaihnzlo7ahhr6wqnnyqprrl7onqdogkfzyum6poixba5ptjptowu" ], "field0":"2", "field1":"8", "field2":"1", "policyId":"6273c027d79555ef171b550d", "accountId":"0.0.34235315" } ], "proof":{ "type":"Ed25519Signature2018", "created":"2022-05-05T12:30:14Z", "verificationMethod":"did:hedera:testnet:3G7JYDvL5QsbBz5u9531UyMKWPJHdDQ5B6nRMK3zqoUm;hedera:testnet:tid=0.0.34404759#did-root-key", "proofPurpose":"assertionMethod", "jws":"eyJhbGciOiJFZERTQSIsImI2NCI6ZmFsc2UsImNyaXQiOlsiYjY0Il19..awGmfcQzVefihEkoLT7zrqltRoEkuluVV8PALFc7ftlOckY0K7wQOwmdZMG479IZ1g4mW0todYmcLueNgTruAQ" }
owner	String	did:hedera:testnet:CV94CdDeDK5J361y1ocNMVxVbYjRZvSJChDkKCz88my;hedera:testnet:tid=0.0.34235316
policyTag	String	Tag_1651752987100

200: OK Successful Operation

{
    // Response
}

500: Internal Server Error Internal Server Error
