Testing/Debugging code for Calculate and Custom Logic Block using UI

1. Overview

The customLogicBlock and calculateContainerBlock can be executed in a “dry-run” mode. This feature provides a sandboxed environment for testing the logic of a block independently, helping policy developers validate their implementation with different input scenarios without affecting the main policy.

2. Custom Logic Block

Dry-Run Execution

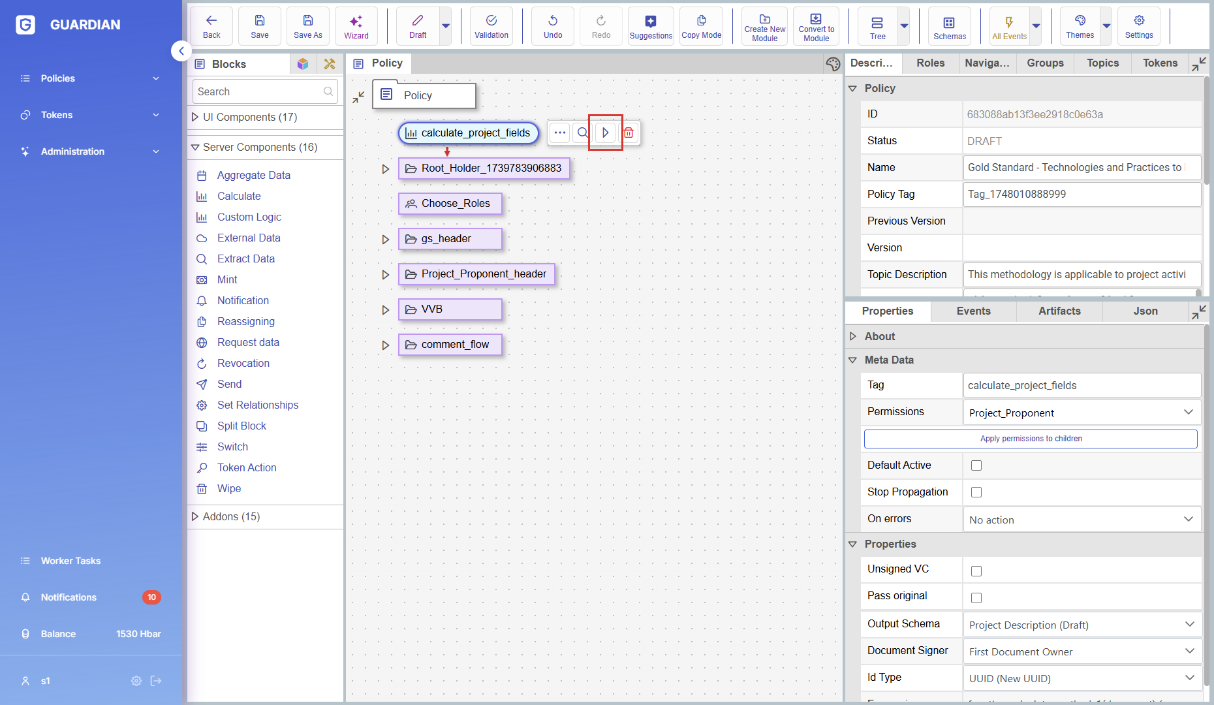

The customLogicBlock supports isolated dry-run execution. This means it can be tested independently of other blocks in a policy, allowing for detailed debugging and rapid prototyping.

Execution is controlled through a step-by-step interface in the UI, enabling users to define parameters, input data, and immediately inspect the results.

---

3. Dry-Run Execution Steps

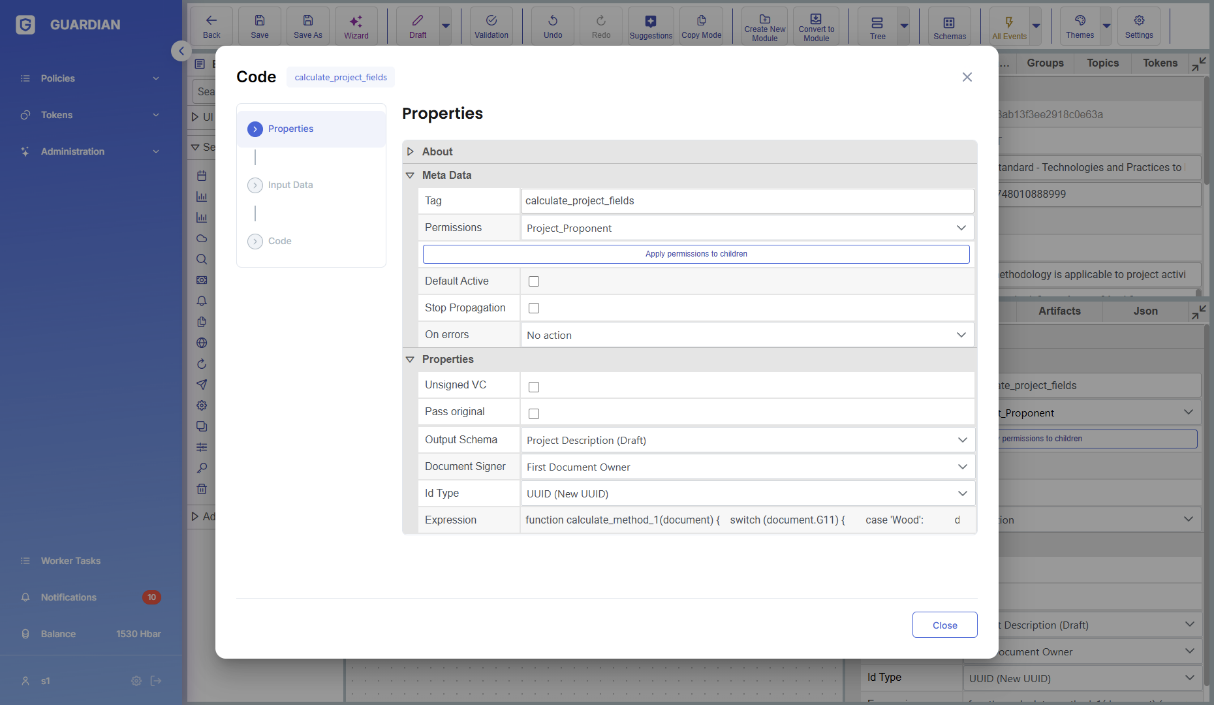

Step 1: Configure Block Properties

Users can adjust various configuration options related to the block directly within the dry-run interface. This avoids the need to navigate back to the main policy editor and streamlines the testing workflow.

---

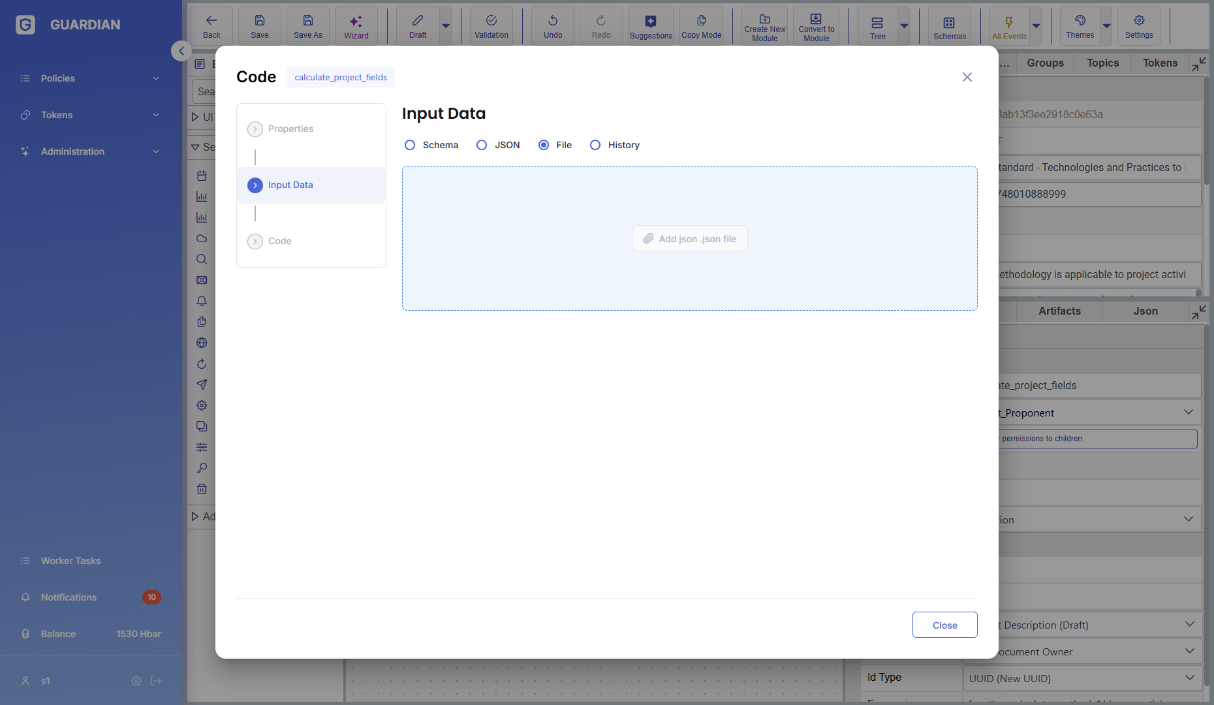

Step 2: Provide Input Data

The block can be tested using mock input data. Three primary input methods are supported:

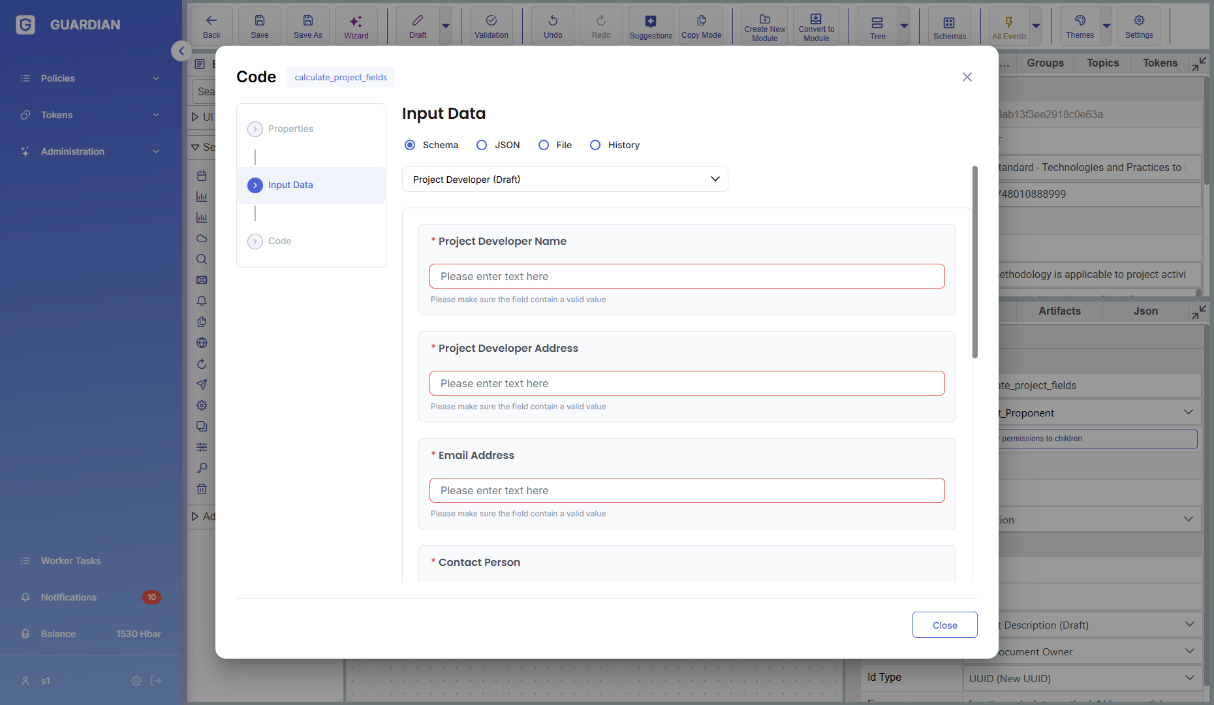

a. Schema-Based Input

• Select a data schema from a dropdown list.

• A dynamic form is generated based on the schema, allowing users to fill in relevant fields.

• Ideal for users who prefer a structured and guided input interface.

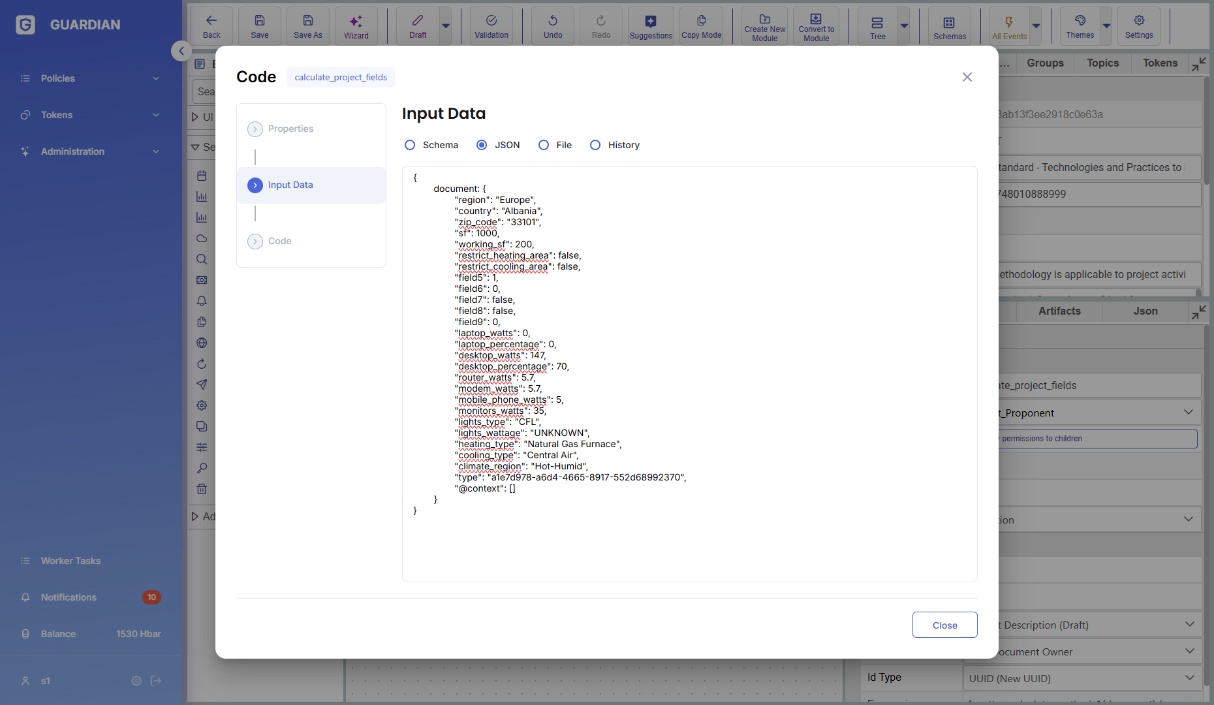

b. JSON Editor

• Directly input JSON-formatted data using the built-in editor.

• Best suited for advanced users or when precise control over the input format is needed.

c. File Upload

• Upload a JSON file containing the test data.

• The file must be well-formed JSON.

Note: Only valid JSON inputs are accepted. Malformed files will cause parsing errors.

---

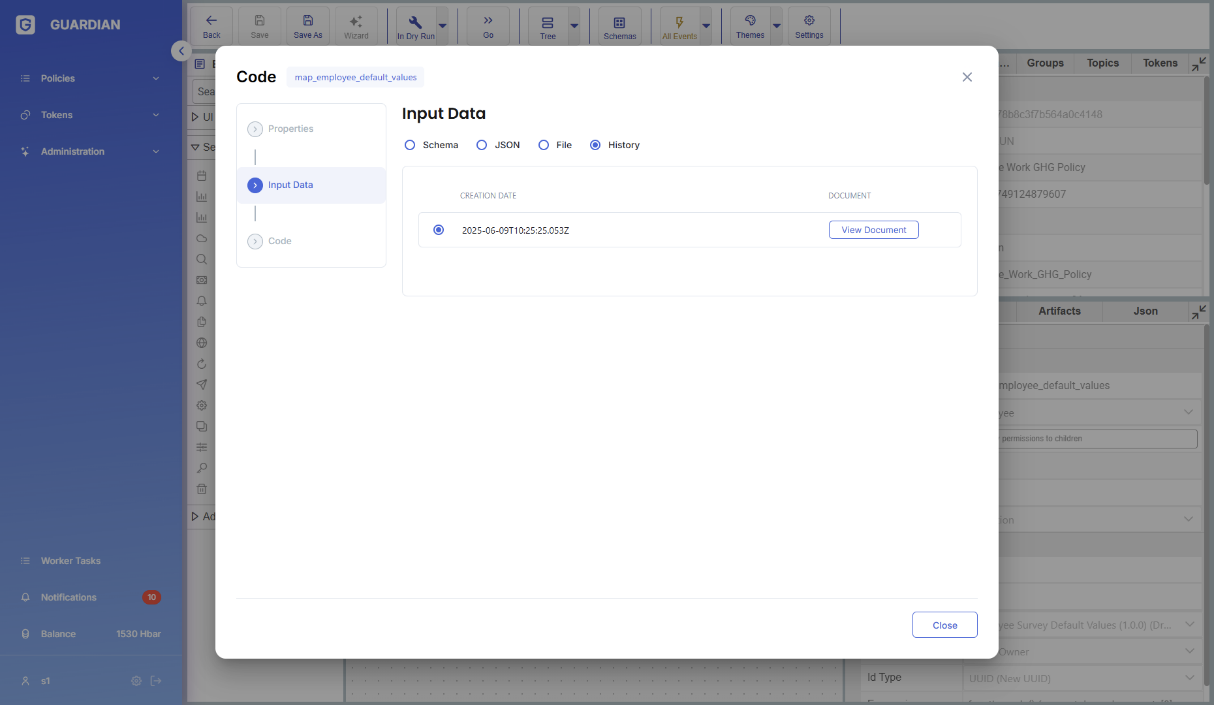

Step 3: Use Historical Data

The History tab displays saved input/output pairs from previous executions during dry-run mode. This is helpful when working with complex workflows that generate intermediate data.

To utilize this:

1. Enable Policy Dry-Run Mode.

2. Execute the policy workflow normally.

3. Once execution reaches the target block, its context (input/output) will be saved and visible in the history tab.

Important Notes:

• Historical data is only available in dry-run mode and is cleared upon exit.

• Code changes made in dry-run are not persisted. To retain them, re-enter the changes in Draft Mode of the policy.

---

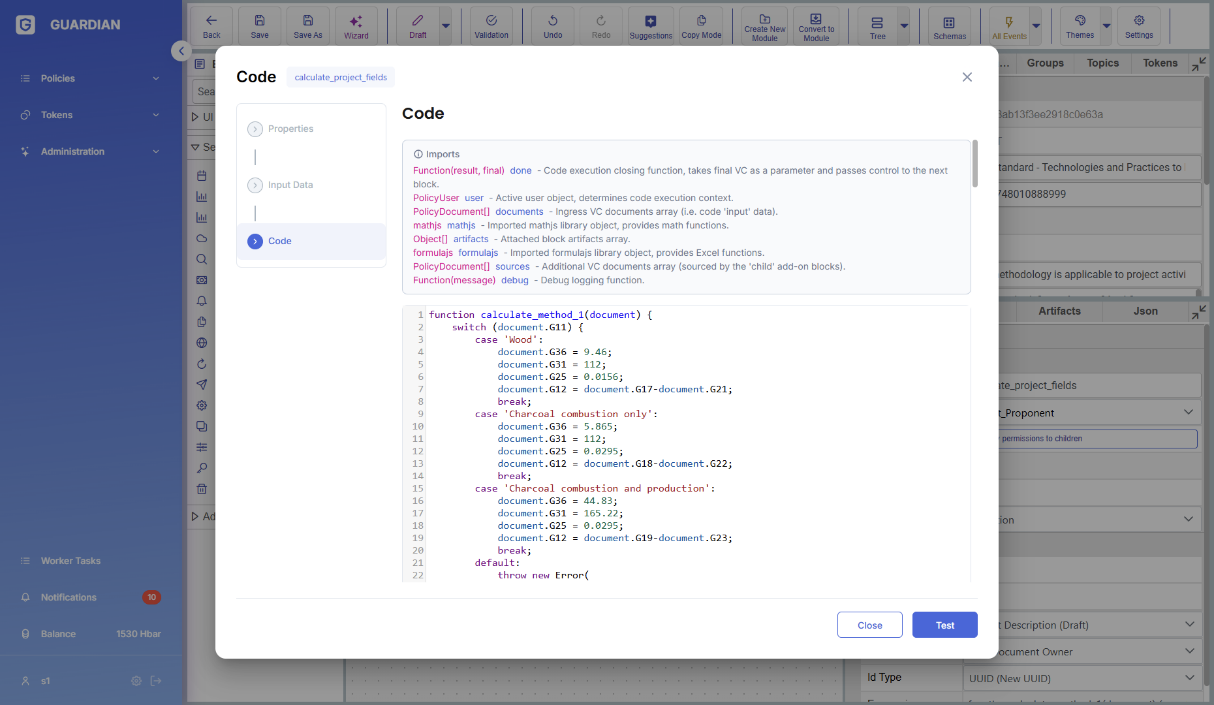

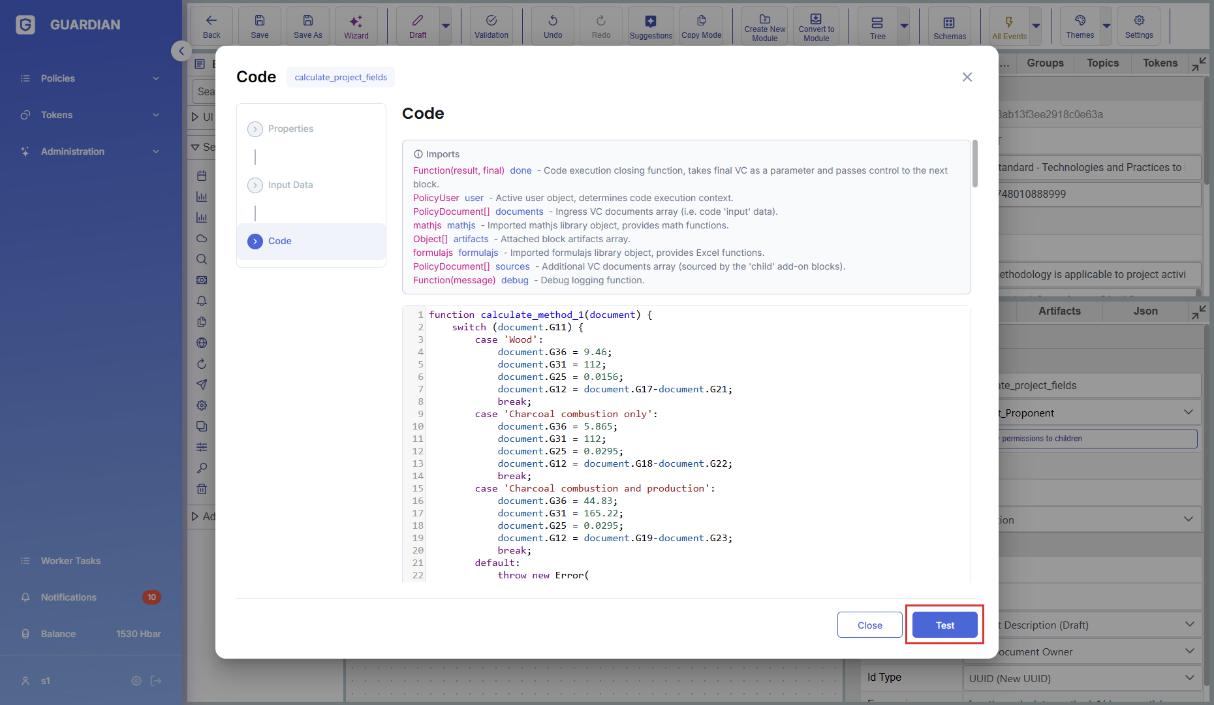

Step 4: Write and Test Code (customLogicBlock only)

In the final step:

• Modify the code as needed.

• Press the Test button to execute.

Debugging Tips

Use the debug function to output logs:

javascriptCopyEditdebug("Variable Value", variable);

• Outputs appear in the Logs tab.

• Has no effect (noop) when the policy is in Published Mode.

---

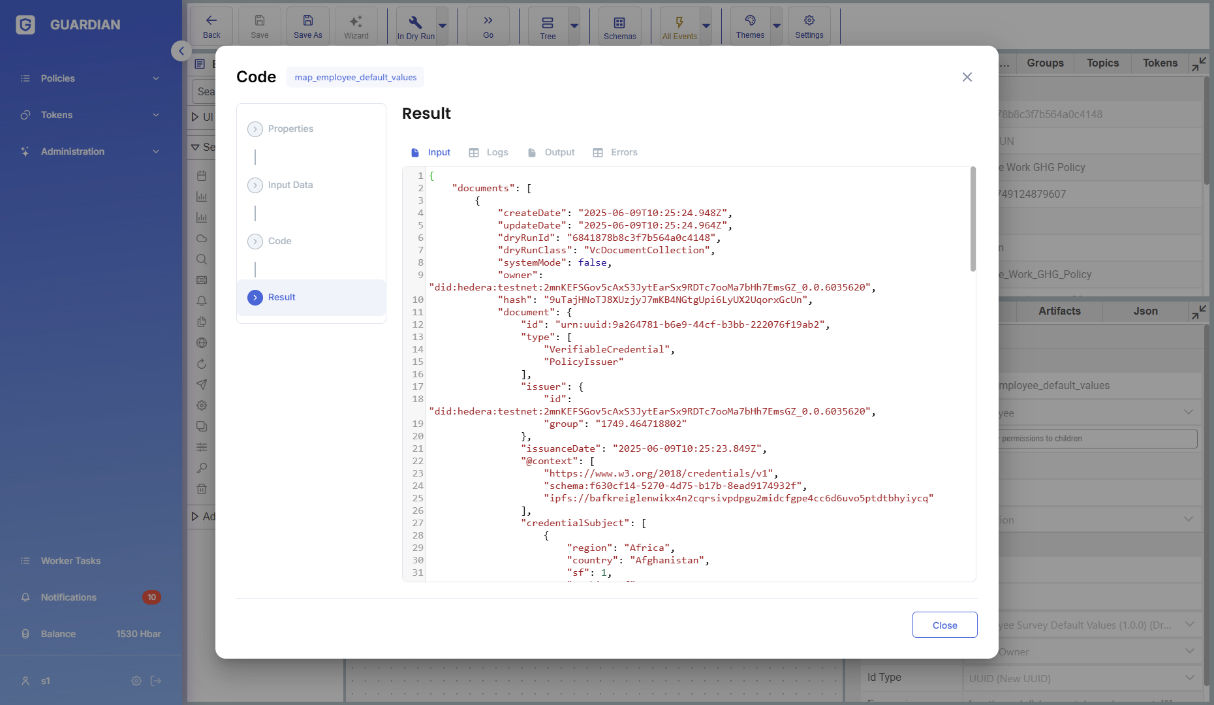

4. Viewing Test Results

Upon completion of the dry-run, the results are split into several tabs:

Tab	Description
Input	Displays the ingress VC (Verifiable Credential) documents used.

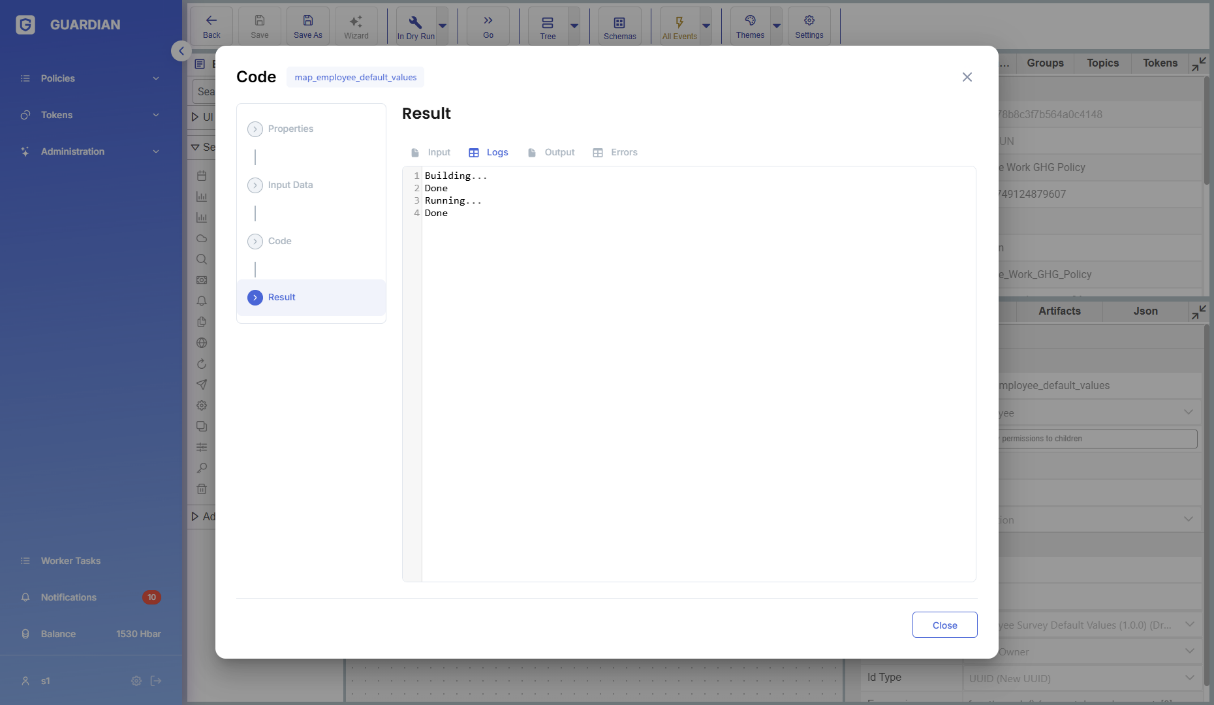

Logs	Shows output from debug() and system logs.

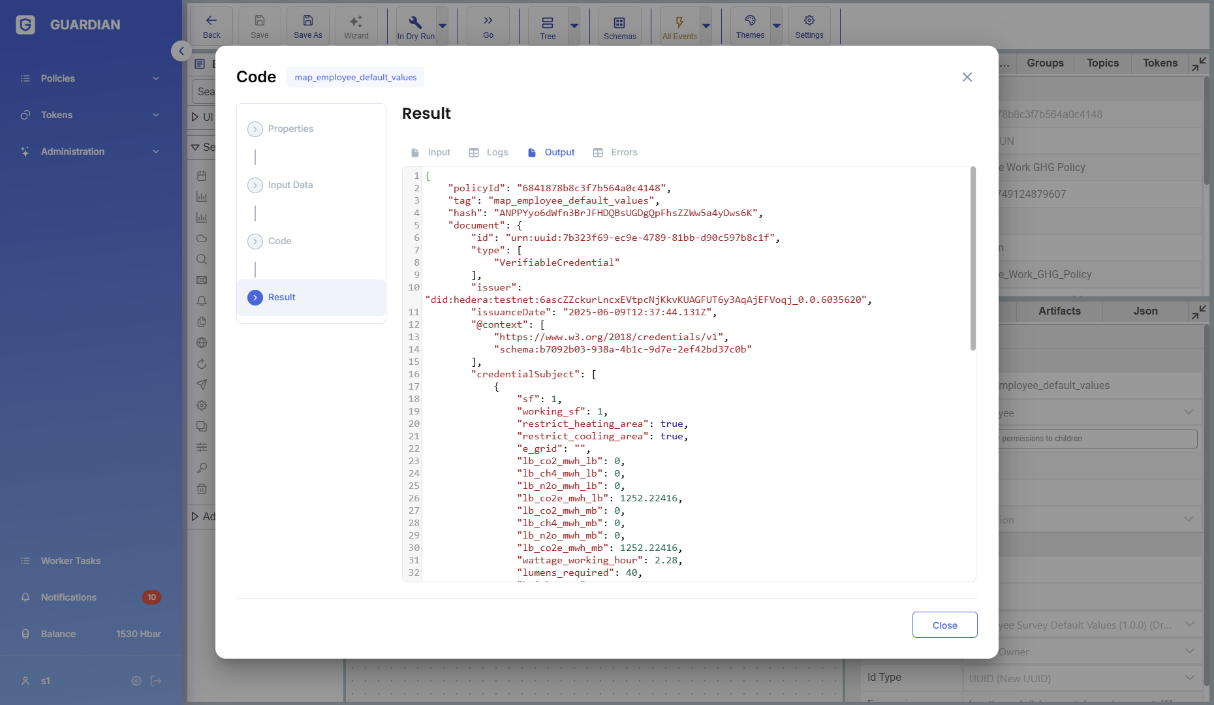

Output	Final result VC document (if execution succeeds).

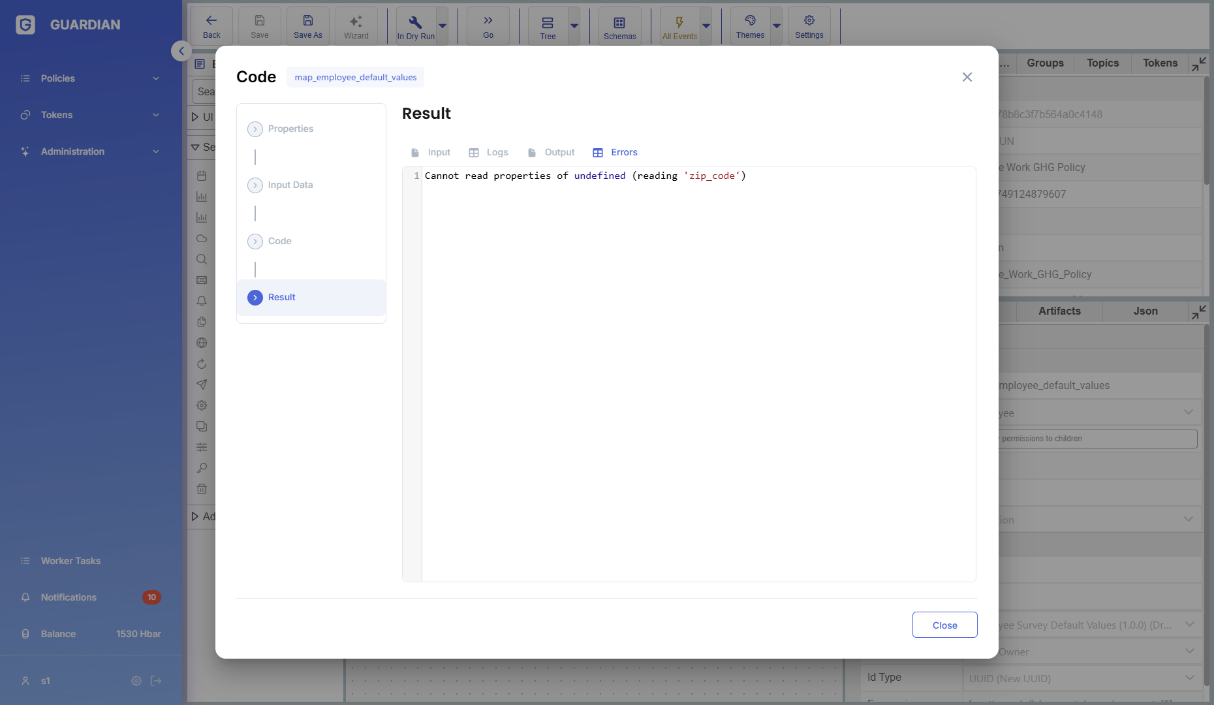

Errors	Any errors encountered during test-run.

---

5. calculateContainerBlock

All features described for customLogicBlock apply to calculateContainerBlock, except it does not include a code editor tab. This block is evaluated based on its configured calculation logic rather than custom scripting.

---

6. API Support for Dry-Run

The following API endpoints are available to programmatically interact with the dry-run feature:

Get Block History

httpCopyEditGET /api/v1/policies/:policyId/dry-run/block/:tagName/history
Permissions: POLICIES_POLICY_UPDATE

• Retrieves the list of historical test data for the specified block.

Execute Block Dry-Run

httpCopyEditPOST /api/v1/policies/:policyId/dry-run/block
Permissions: POLICIES_POLICY_UPDATE

• Submits the block for dry-run execution with the specified input.
