# Export Schema Tree as PlantUML

## 1. Opening Export Dialog

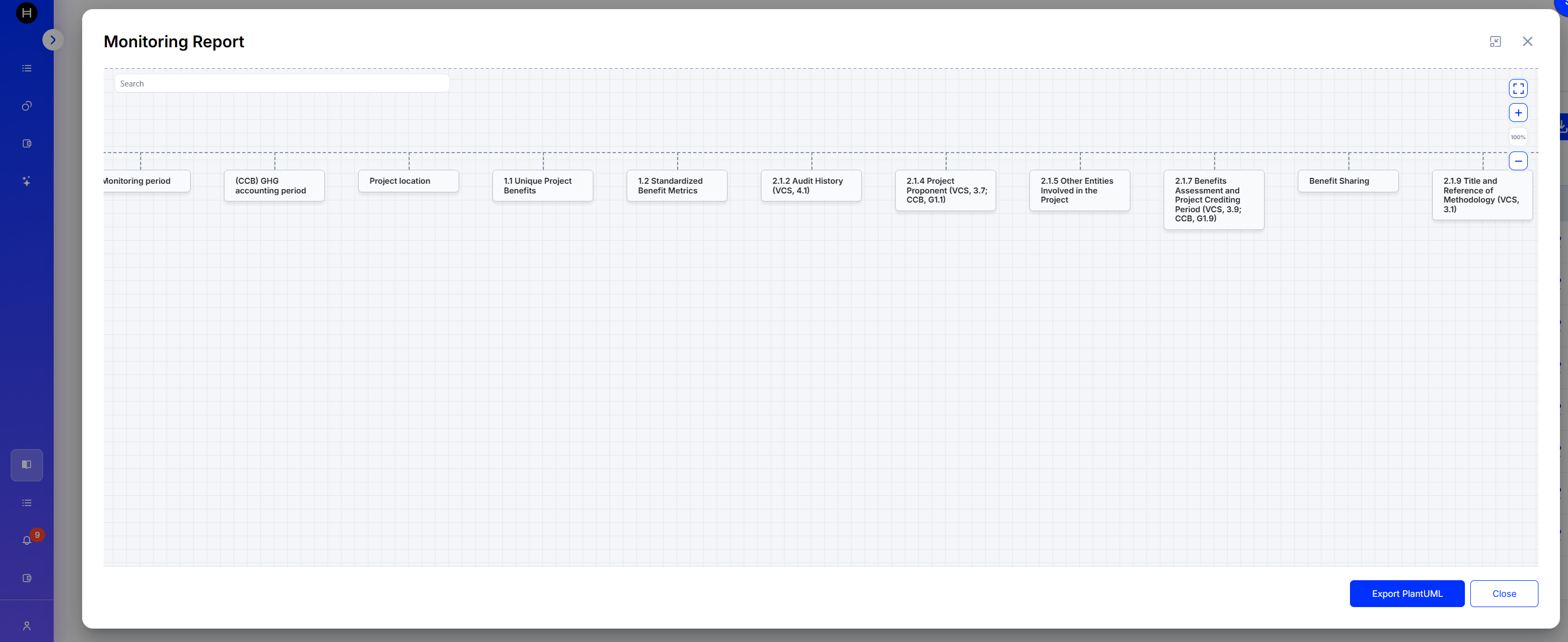

The Schema Tree can be exported as a PlantUML class diagram. To export, open the Schema Tree view by clicking the **Tree** button for the desired schema, then click the **Export PlantUML** button:

<figure><img src="https://501642358-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbKnJV8vV7zUxRwKIsJKg%2Fuploads%2Fgit-blob-87e5f6caacc8c910759e323d22867f70de3f01f1%2Fexport-plantuml-button.png?alt=media" alt=""><figcaption></figcaption></figure>

## 2. Export Options

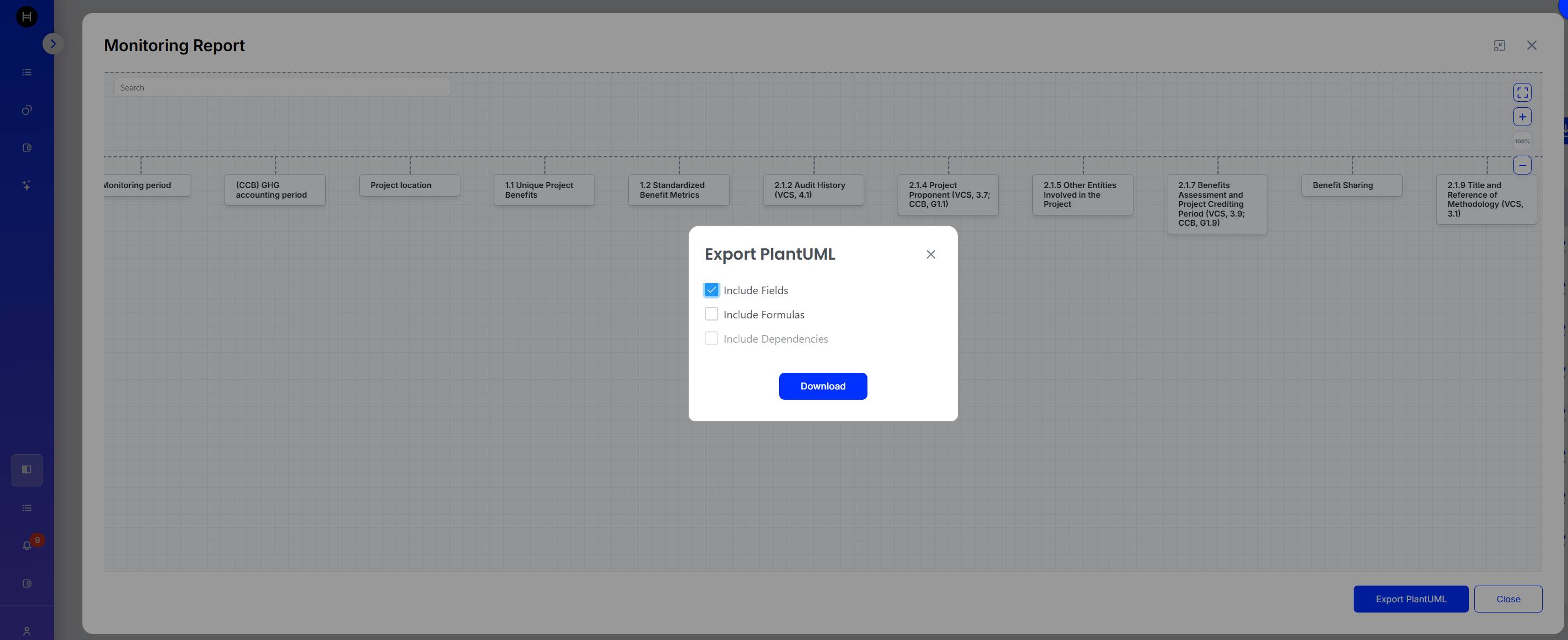

The Export PlantUML dialog provides three checkboxes to control the level of detail:

* **Include Fields** — Adds field names and descriptions to each schema class. Enabled by default.
* **Include Formulas** — Adds formula packages with stereotyped elements (constants, variables, formulas, text) and cross-formula links.
* **Include Dependencies** — Expands the diagram to include formulas and schemas referenced by directly linked formulas. Requires **Include Formulas** to be enabled.

<figure><img src="https://501642358-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbKnJV8vV7zUxRwKIsJKg%2Fuploads%2Fgit-blob-0e3127a2dd8df6bca49ca9d19c196a09ed30eed3%2Fexport-plantuml-dialog.png?alt=media" alt=""><figcaption></figcaption></figure>

## 3. Exported File

Clicking **Download** generates and downloads a `.puml` file that can be rendered in any PlantUML-compatible tool (e.g., PlantUML online editor, IntelliJ IDEA, VS Code extensions).

The diagram includes:

* **Schema classes** with parent-child composition arrows
* **Fields** with names and descriptions (when enabled)
* **Formula packages** grouping constants, variables, formulas, and text elements (when enabled)
* **Cross-formula links** shown as dependency arrows (when enabled)
* **Color coding** per element type for easy visual identification
